NANLITE introduces the PavoTube II 6XR

The new NANLITE PavoTube II 6XR, is the perfect go-anywhere full-colour LED tube light with pixel effects and professional wireless control. At just 25cm long it has 8 individually controllable pixels for smooth flowing lighting effects, and also delivers exceptional output and high accuracy. It has an internal battery as well as PD 3.0 power input, as well as Bluetooth, DMX/RDM and LumenRadio CRMX control.

Soft Touch Lighting for Any Scene

The PavoTube II 6XR incorporates NANLITE’s RGBWW colour mixing technology, providing a colour temperature range of 2700K to 12000K and ±150 green/magenta adjustment. In contrast to comparable pixel tube lights of its size, it delivers impressive output 562 lux@0.5m(5600K) coupled with high accuracy. The PavoTube II 6XR features a uniquely designed diffuser that renders the light softer and more uniform, capable of elegantly wrap around the subject. It offers versatility, excelling as a fill light to enhance close-up shots and refine details, as well as a practical light source in medium to large scenes, where it can effectively illuminate specific areas.

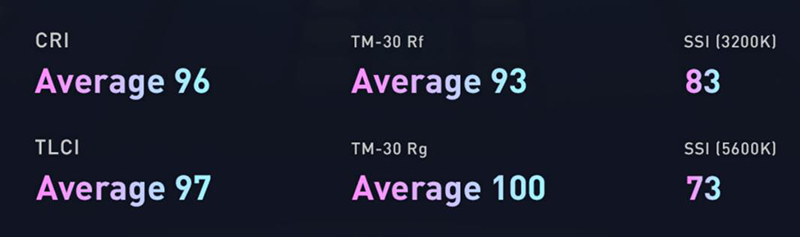

Optimized White Light Accuracy

Enhanced white light correction is achieved through Nanlite’s advanced RGBWW colour mixing technology. This technology utilizes the RGB chips in the PavoTube II 6XR to generate accurate representations of different white light sources, resulting in superior colour rendering.

Flowing with 8 Controllable Pixels

Each PavoTube II 6XR features 8 controllable pixels within its 22.5cm long illuminated area. Users can control pixel effects and adjust various parameters directly on the light, or via the NANLINK App 2.0. Importantly the light also gains the flexibility to independently program each pixel through DMX/RDM or LumenRadio CRMX, greatly enhancing the ability to create customized effects in a professional lighting control setup.

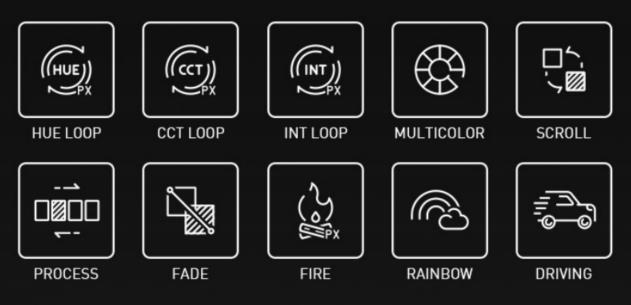

Versatile Lighting, Limitless Creativity

The PavoTube II 6XR is equipped with five lighting modes for limitless creativity, including CCT, HSI, gel, lighting effects, and pixel effects, each offering extensive options and exceptional colour accuracy. The 10 built-in pixel effects allow for multi-pixel sync control, making it easy to create dynamically flowing light effects. The PavoTube II 6XR can transform everyday visuals into dynamic scenes, whether it’s through its continuous output of cool or warm light, colour light, or the smooth performance of special effects and pixel effects.

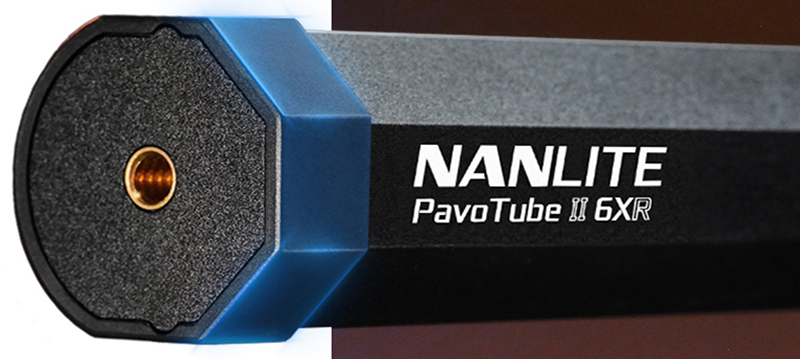

Delicate Design, Easy Setup

The PavoTube II 6XR is a standard T12 tube size and weighs only 270g, ensuring a comfortable grip with no noticeable heaviness even during extended use. The back of the fixture has a polygonal design for stability, allowing it to be placed flat surfaces without additional support or the fear of it rolling away. Built-in magnets at both ends enable direct attachment to magnetic surfaces. Alternatively, the included iron plates can be used for attachment to other surfaces.

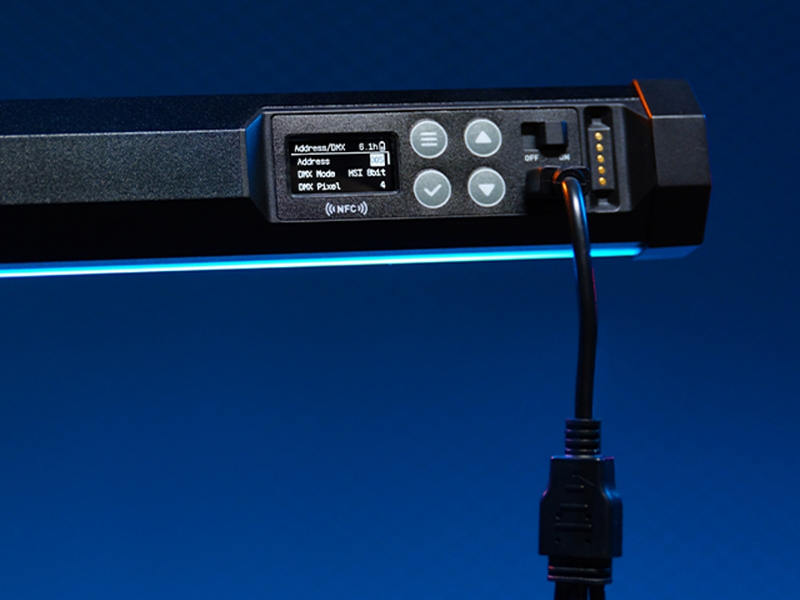

Multiple Control Options

The PavoTube II 6XR offers versatile control options that ensures seamless operation in any environment. It can be controlled on-board, via Nanlink App 2.0, via DMX/RDM or with LumenRadio CRMX. Users can adopt the best control method for different shooting scenarios, allowing them to manage lighting whether on a feature film set, a smaller scale production, or a creator video.

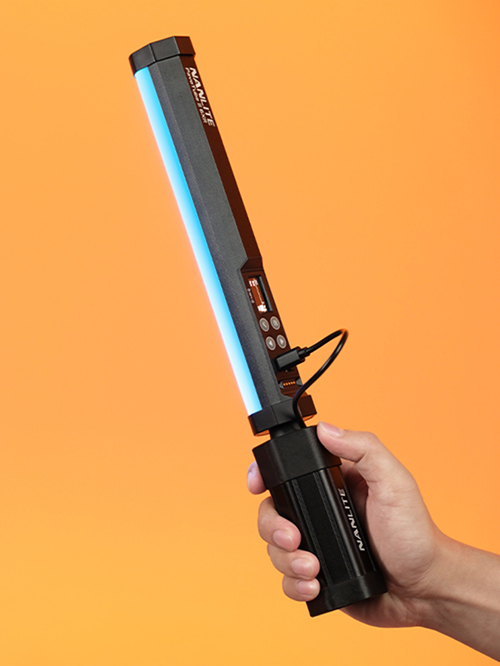

Flexible Power Supply

The PavoTube II 6XR has a built-in 3200mAh rechargeable battery, allowing it to work anytime, anywhere without cables. The USB-C port on the fixture supports a wide range of input voltages
and currents* and is compatible with the PD 3.0 protocol**, ensuring seamless integration with various modern power sources. Additionally, it can be used with the optional F550 battery grip, allowing it to be powered from a single NP-F550 type battery.

*DC 5V/2A, 5V/3A, 9V/2A, 9V/3A, 12V/2A, 12V/3A, 20V/1A
**PD3.0 adapter: (9-20V) 20W Min

Whether connected to a power outlet for continuous light output, or quickly recharging for on-the-go shooting, the PavoTube II 6XR provides total flexibility with uninterrupted operation. The internal battery can also prevent disruptions caused by sudden loss of AC or external power. The PavoTube II 6XR can also be charged in the optional 8-light kit case, automatically connecting to power via electronic contacts on the fixture the moment each tube is placed in the case.

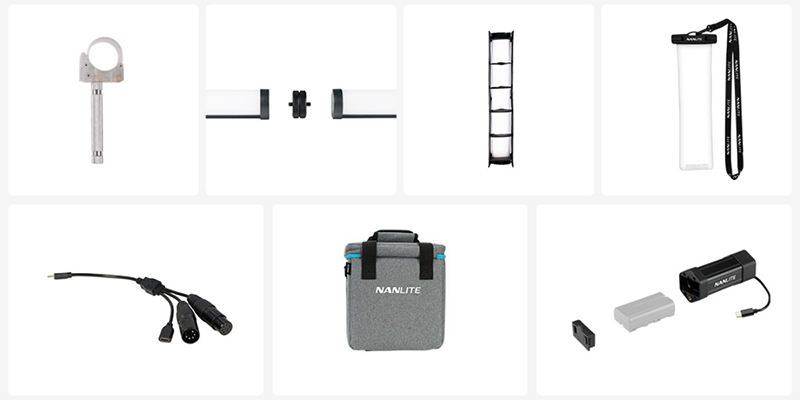

Compatible with 6C Accessories

The PavoTube II 6XR is compatible with the existing accessory ecosystem of the PavoTube II 6C, allowing users to continue using accessories they may already own. This convenient compatibility means users don’t need to prepare different accessories if using both fixtures together. The PavoTube II 6XR's complete accessory ecosystem includes over 20 accessories across 7 categories (clip/holder, mounting, modifier, waterproofing, cable, power supply, storage), enabling light shaping and mounting for flexible adaptation to various scenarios, empowering limitless creativity.

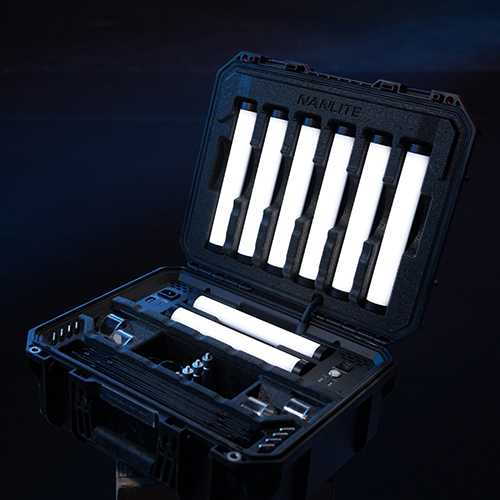

8-Light Kit • Comprehensive Solution

NANLITE has introduced an 8-light kit exclusively for the PavoTube II 6XR, designed for professional production needs. It includes eight fixtures, modifiers, mounting accessories, and a custom charging case (based on the Gutek T-230). With an IP67 rating, impact resistance, shockproof design, and V-2 flame retardancy, the case provides reliable protection during transport.

Both fixtures and accessories have dedicated slots, ensuring organized storage. The case supports simultaneous charging of all eight fixtures and offers three power supply options: AC power, V- mount battery, and PD adapter. This portable solution simplifies multi-fixture setups, offering efficient storage, charging, and protection on set.

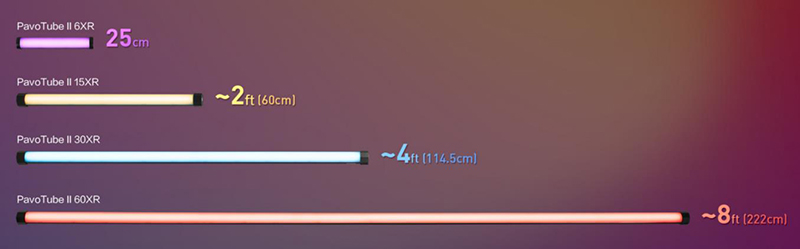

Versatile Lighting Possibilities with the PavoTube II XR Series

With the introduction of the PavoTube II 6XR, the PavoTube II XR series now comprises four sizes. Together, they cater to differing spaces and applications, offering precise, portable, cable-free lighting solutions. The longer tube lights are ideal for simulating elongated light sources and providing broad coverage, while the shorter tubes are ideally suited for tight spaces and detailed lighting. By combining long and short PavoTube fixtures, users can easily create dynamic lighting.

PavoTube II 6XR Key Features:

• LED RGBWW Pixel Tube Light
• Weighs only 270g and approx. 25cm long, with a standard T12 tube size
• Wide CCT range of 2700K-12000K with ±150 green/magenta adjustment
• Excellent colour rendition with CRI/TLCI average 96/97, TM-30 Rf/Rg average 93/100
• Multiple control methods: on-board, Nanlink App 2.0, DMX/RDM, LumenRadio CRMX
• Five lighting modes: CCT, HSI, gel, effect, and pixel effect
• 15 built-in special effects with customizable parameters in each effect
• 10 built-in pixel effects allow for multi-pixel sync control
• Various power supply options: built-in battery, DC adapter, PD 3.0 adapter, NP-F550 battery grip
• Compatible with PavoTube II 6C accessories
• Supports firmware update via USB-C port

PavoTube II 6XR 8-Light Kit Key Features:

• Includes 8 PavoTube II 6XR fixtures, modifiers, and mounting accessories
• Three power supply options: AC power, V-mount battery, and PD adapter
• Supports charging eight fixtures simultaneously via the electronic contacts
• Equipped with a indicator button for checking the fixtures’ power-supply state
• Comes with an IP-67 rated Gutek T-230 protector case for safe transportation

Price and Availability

The PavoTube II 6XR is shipping now and costs $149, the 8-light kit costs $1490, excluding local tax. The PavoTube II 6XR and 8-light kit will be on display at NAB Show in Las Vegas (booth N2859).

For more information,
please visit: www.nanlite.com
